Heat Maps
Plot heatmaps to show the geometric mean of the risk scores.
Import libraries
Generate Random Risks
Generate Risks
import random
import pandas as pd
def generate_risks(num_risks=20):
risks = []
for i in range(num_risks):
risk = {
"risk-id": f"R-{int(i + 1):03}",
"probability": random.randint(1, 5),
"schedule": random.randint(1, 5),
"cost": random.randint(1, 5),
}
risks.append(risk)
return risks
risks = generate_risks()
Calculate Risk Scores
df = pd.DataFrame(risks)
df["impact"] = df[["schedule", "cost"]].max(axis=1)
df["risk-score"] = df["probability"]
df
| risk-id | probability | schedule | cost | impact | risk-score |
|---|---|---|---|---|---|
| R-001 | 4 | 5 | 1 | 5 | 20 |
| R-002 | 2 | 4 | 3 | 4 | 8 |
| R-003 | 1 | 2 | 2 | 2 | 2 |
| R-004 | 2 | 1 | 1 | 1 | 2 |
| R-005 | 1 | 4 | 1 | 4 | 4 |
| R-006 | 3 | 1 | 3 | 3 | 9 |
| R-007 | 1 | 3 | 5 | 5 | 5 |
| R-008 | 5 | 4 | 5 | 5 | 25 |
| R-009 | 3 | 3 | 4 | 4 | 12 |
| R-010 | 5 | 3 | 5 | 5 | 25 |
| R-011 | 3 | 2 | 4 | 4 | 12 |
| R-012 | 4 | 5 | 1 | 5 | 20 |
| R-013 | 2 | 2 | 4 | 4 | 8 |
| R-014 | 2 | 3 | 2 | 3 | 6 |
| R-015 | 1 | 2 | 3 | 3 | 3 |
| R-016 | 1 | 4 | 2 | 4 | 4 |
| R-017 | 4 | 4 | 2 | 4 | 16 |
| R-018 | 4 | 2 | 2 | 2 | 8 |
| R-019 | 1 | 3 | 3 | 3 | 3 |
| R-020 | 3 | 5 | 4 | 5 | 15 |
Find the Count for Each impact-probability Combination
df = (
df[["risk-id", "probability", "impact"]]
.groupby(["probability", "impact"])
.agg("count")
.reset_index()
.rename(columns={"risk-id": "counts"})
)
df
| probability | impact | counts |
|---|---|---|
| 1 | 2 | 1 |
| 1 | 3 | 2 |
| 1 | 4 | 2 |
| 1 | 5 | 1 |
| 2 | 1 | 1 |
| 2 | 3 | 1 |
| 2 | 4 | 2 |
| 3 | 3 | 1 |
| 3 | 4 | 2 |
| 3 | 5 | 1 |
| 4 | 2 | 1 |
| 4 | 4 | 1 |
| 4 | 5 | 2 |
| 5 | 5 | 2 |
Send to Records for Plotting
risk_score_counts = df.to_dict("records")
risk_score_counts
[{'probability': 1, 'impact': 2, 'counts': 1},
{'probability': 1, 'impact': 3, 'counts': 2},
{'probability': 1, 'impact': 4, 'counts': 2},
{'probability': 1, 'impact': 5, 'counts': 1},
{'probability': 2, 'impact': 1, 'counts': 1},
{'probability': 2, 'impact': 3, 'counts': 1},
{'probability': 2, 'impact': 4, 'counts': 2},
{'probability': 3, 'impact': 3, 'counts': 1},
{'probability': 3, 'impact': 4, 'counts': 2},
{'probability': 3, 'impact': 5, 'counts': 1},
{'probability': 4, 'impact': 2, 'counts': 1},
{'probability': 4, 'impact': 4, 'counts': 1},
{'probability': 4, 'impact': 5, 'counts': 2},
{'probability': 5, 'impact': 5, 'counts': 2}]

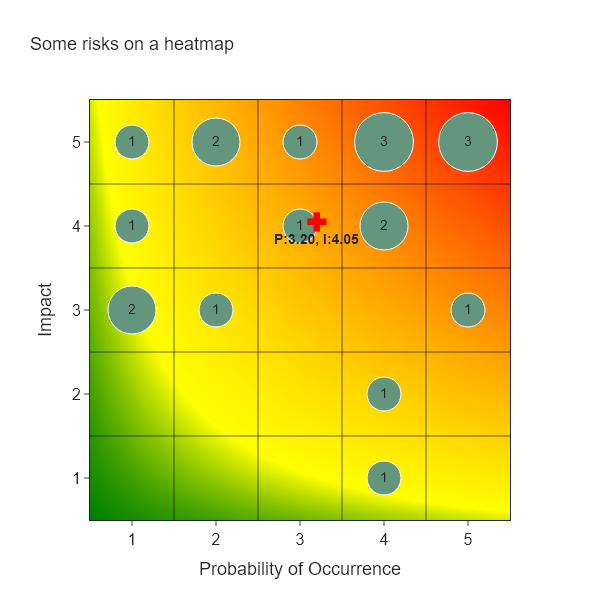

Plot the Heatmap
fig = add_scatter_to_heat_map(risk_score_counts, "Some risks on a heatmap")
fig.write_image("heat-map.png")
fig.show()
